Product Details
＋

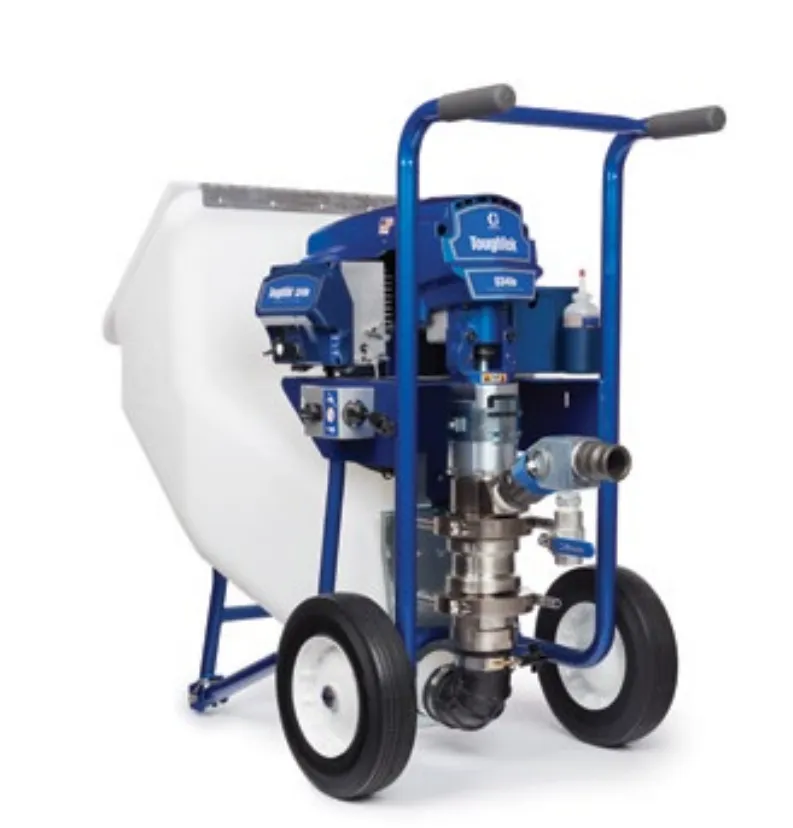

Engineered with Graco’s proprietary piston pump technology, the ToughTek S340e can easily handle repair mortars with small to medium sized aggregate. The S340e can also deliver all materials through long hose lengths, allowing you to spray farther distances and get the job done sooner.
Portable electric pump for stucco and EIFS applications
-
Easily handles stucco and EIFS materials – base coats to finish coats, even air / water-resistive barrier materials
-
Electric operation – plugs into a standard 120V, 15A wall outlet
-
Extremely easy to operate
-
Compact design – fits in tight areas
-
Lightweight – easily lifted by two people
-
Easy to transport – fits in the back of a pickup
-
Fast and easy maintenance
| TYPE | Electric Piston Pump |
|---|---|
| APPLICATION | Industrial |
| COMPATIBLE MATERIAL | Cementitious Material |
| FLUID OUTLET SIZE (IN) | 1-1/2 |
| FLUID OUTLET SIZE (MM) | 38.1 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPT |
| FLUID SECTION TYPE | 2-Ball |
| INPUT VOLTAGE (V AC) | 230 |
| MATERIAL | Stucco, EIFS, Repair Mortar |
| MAXIMUM FLOW RATE (GPM) | 6.5 |
| MAXIMUM FLOW RATE (L/MIN) | 24.61 |
| MAXIMUM INPUT AMPERAGE (A) | 10 |
| MAXIMUM WORKING PRESSURE (BAR) | 41.3 |
| MAXIMUM WORKING PRESSURE (KPA) | 4130 |
| MAXIMUM WORKING PRESSURE (PSI) | 600 |
| MINIMUM FLOW RATE (GPM) | 600 |
| MODEL | ToughTek |
| POWER TYPE | Electric |
| SERIES | S340e |
| MAXIMUM WORKING PRESSURE (MPA) | 4.1 |
